Noor · 2800
Noor
Concealed thermostatic shower system
Everything in the wall except the light: a 250 mm rain head on a wall arm, a hand shower on its own outlet, and a thermostatic panel with a digital temperature display.
- Finish
- Brushed Gold
- Order code
- 2800 045045 BG
Quote this code when ordering. The last letters are the finish.
At a glance
- Thermostatic panel with flow-powered digital temperature display
- Three outlets: rain head, hand shower and a spare for a waterfall or jets

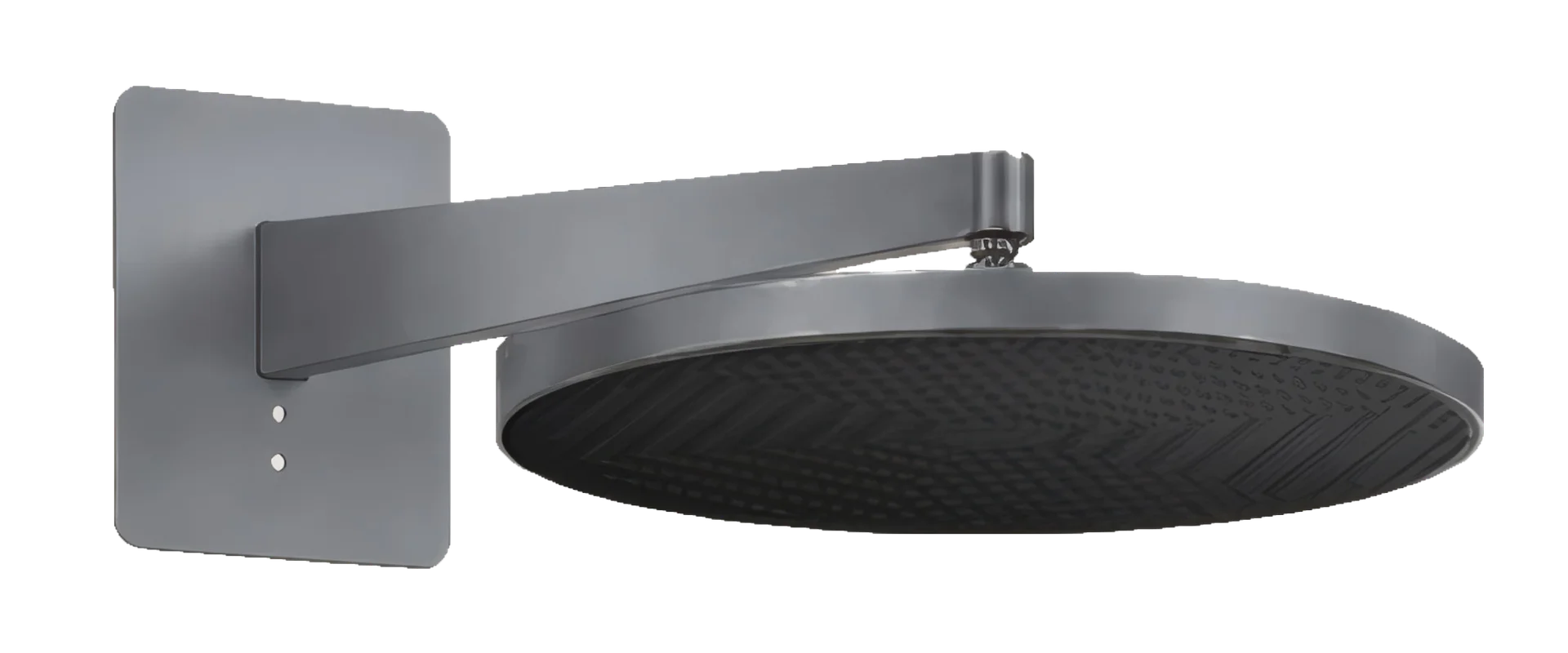

- 250 mm rain head on a 400 mm wall arm with square plate
- Concealed body with built-in spirit level and adjustable depth

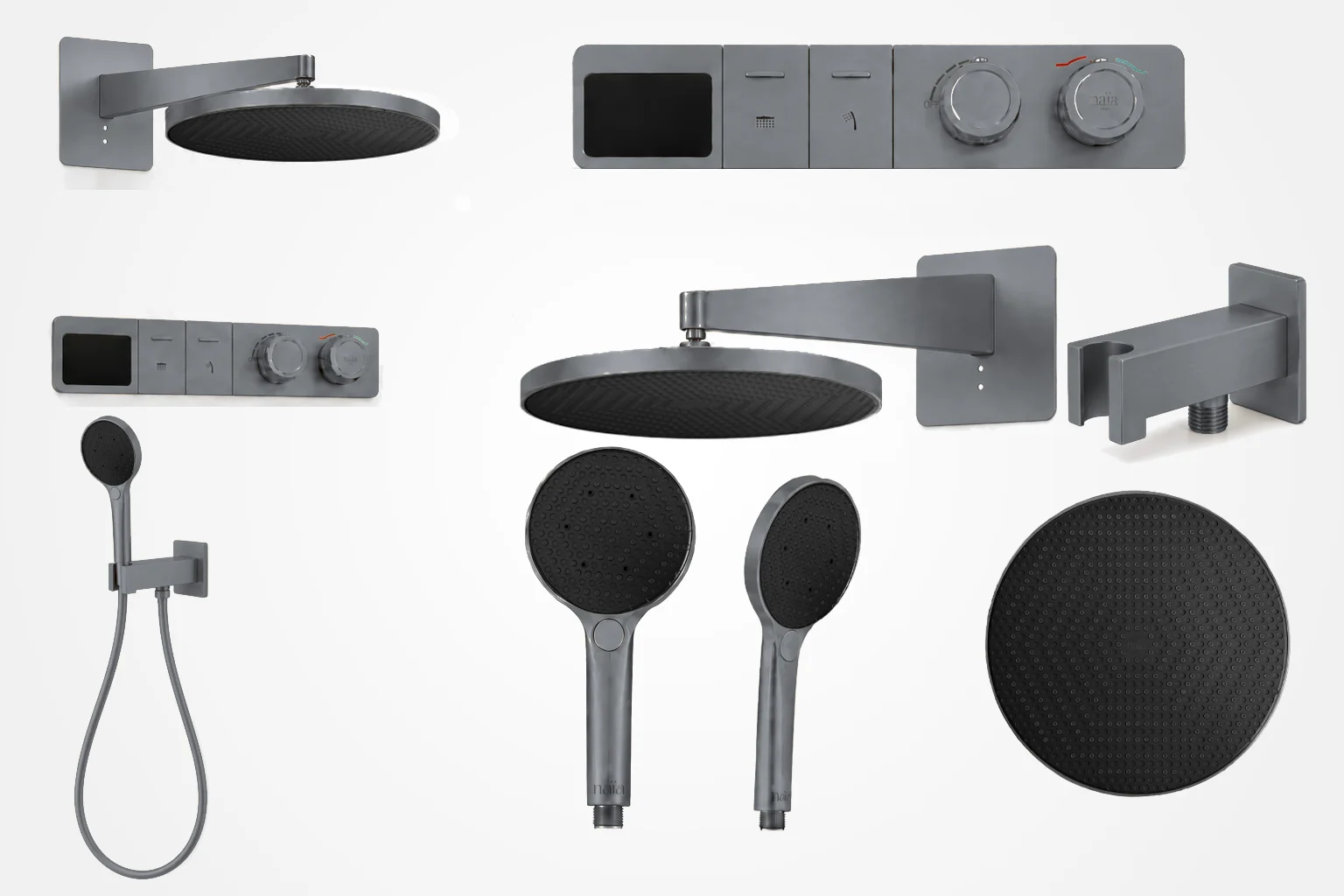

Specifications
- Rain head
- Ø 250 mm on a 400 mm arm with 150 mm square wall plate
- Hand shower
- Ø 110 mm, three sprays, 1.5 m hose, combined outlet and holder
- Control panel
- Thermostatic dial, three outlet selectors, digital temperature display
- Display power
- Micro-turbine driven by the water flow, no batteries
- Concealed body
- Engineering polymer housing, brass cartridge valves, G1/2" inlets and outlets
- Installation depth
- Adjustable 60 to 90 mm from body face to finished tile
- Working pressure
- 1.5 to 5 bar, both supplies balanced
- Finish
- PVD brushed gold or gun grey; matte black head faces

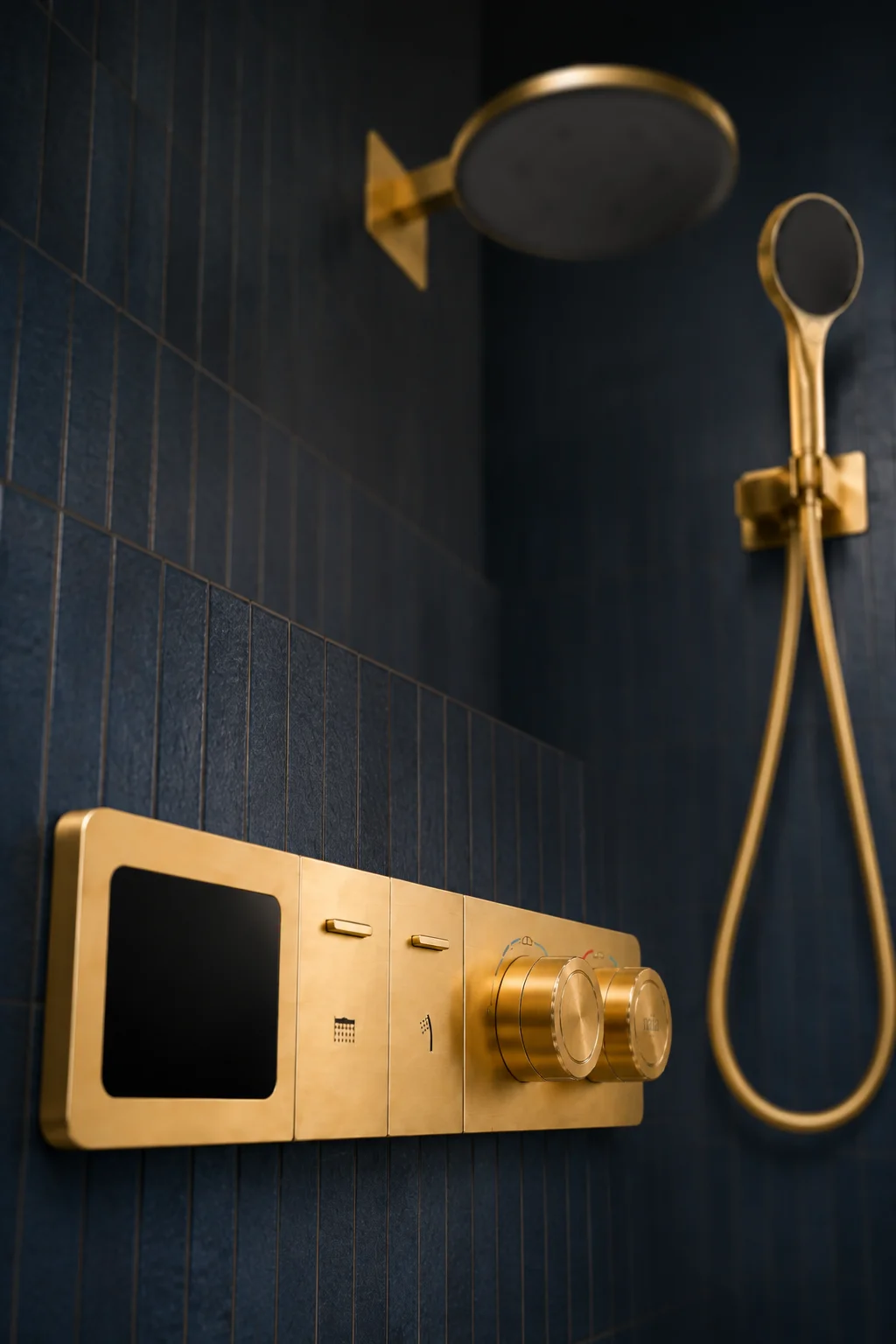

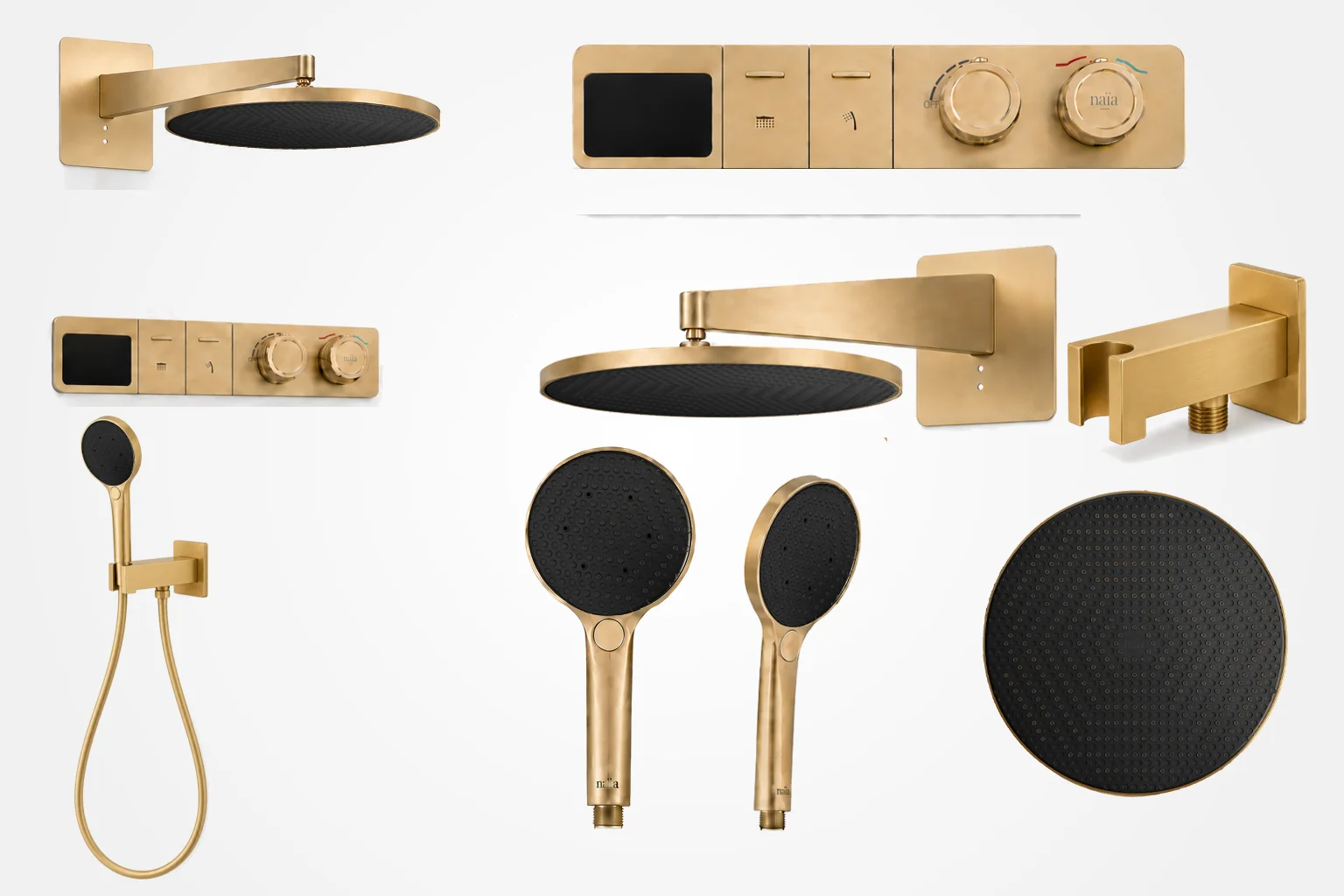

Noor is the system for suites where the shower is the room. Nothing shows on the wall except three pieces: the rain head on its square-plate arm, the hand shower resting in its combined outlet and holder, and a slim panel with a temperature display, a selector for each outlet and a single thermostatic dial.
The display draws its power from the water flow, so there are no batteries behind the tile. The thermostatic cartridge holds the set temperature and stops at 38 °C unless overridden, and a third outlet on the concealed body is left for a waterfall spout or body jets.
The concealed body is where the engineering is. It is delivered with a built-in spirit level, adjustable mounting arms and a marked depth range for the tile build-up, so the rough-in is right the first time and the trim fits flush at second fix.
In place

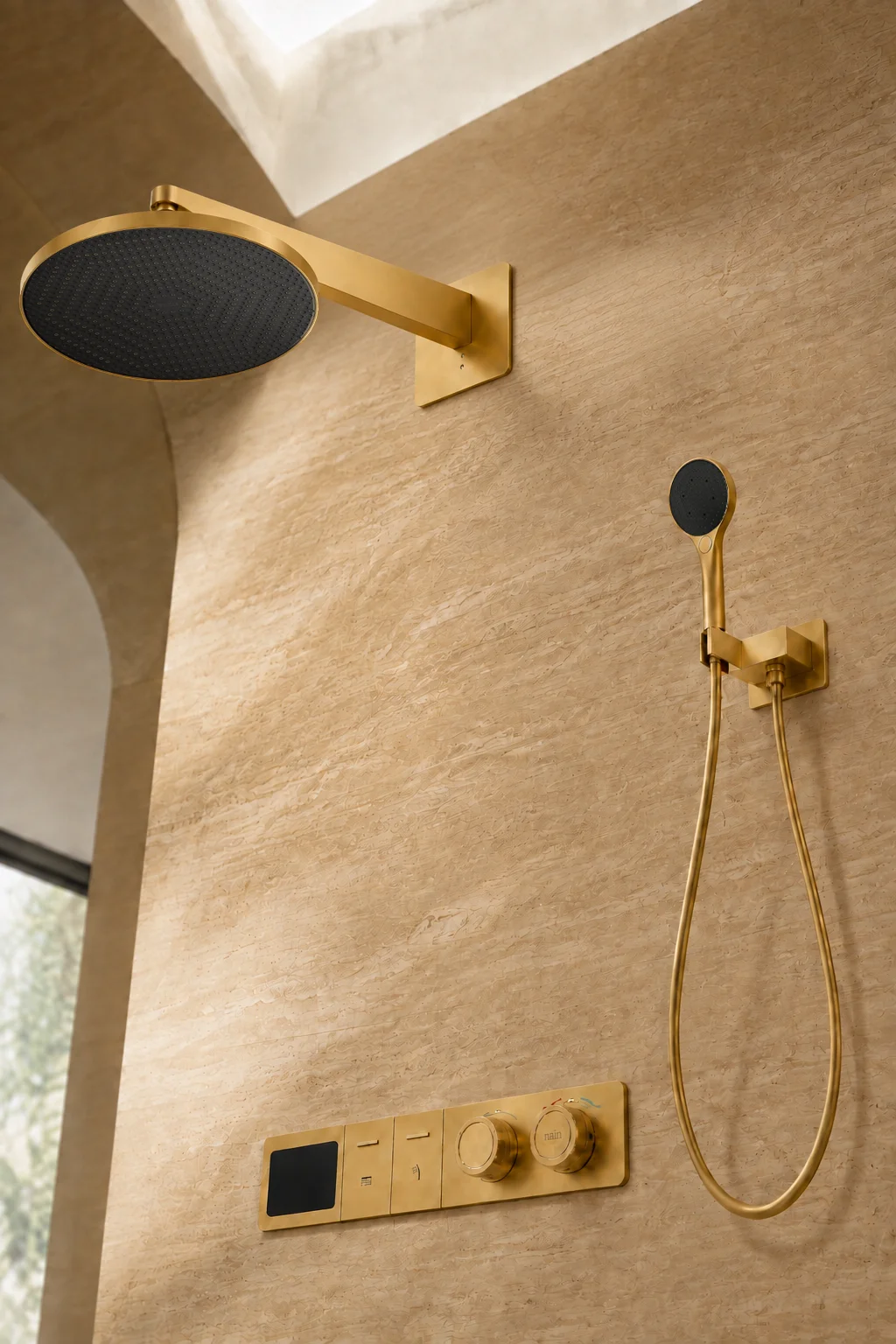

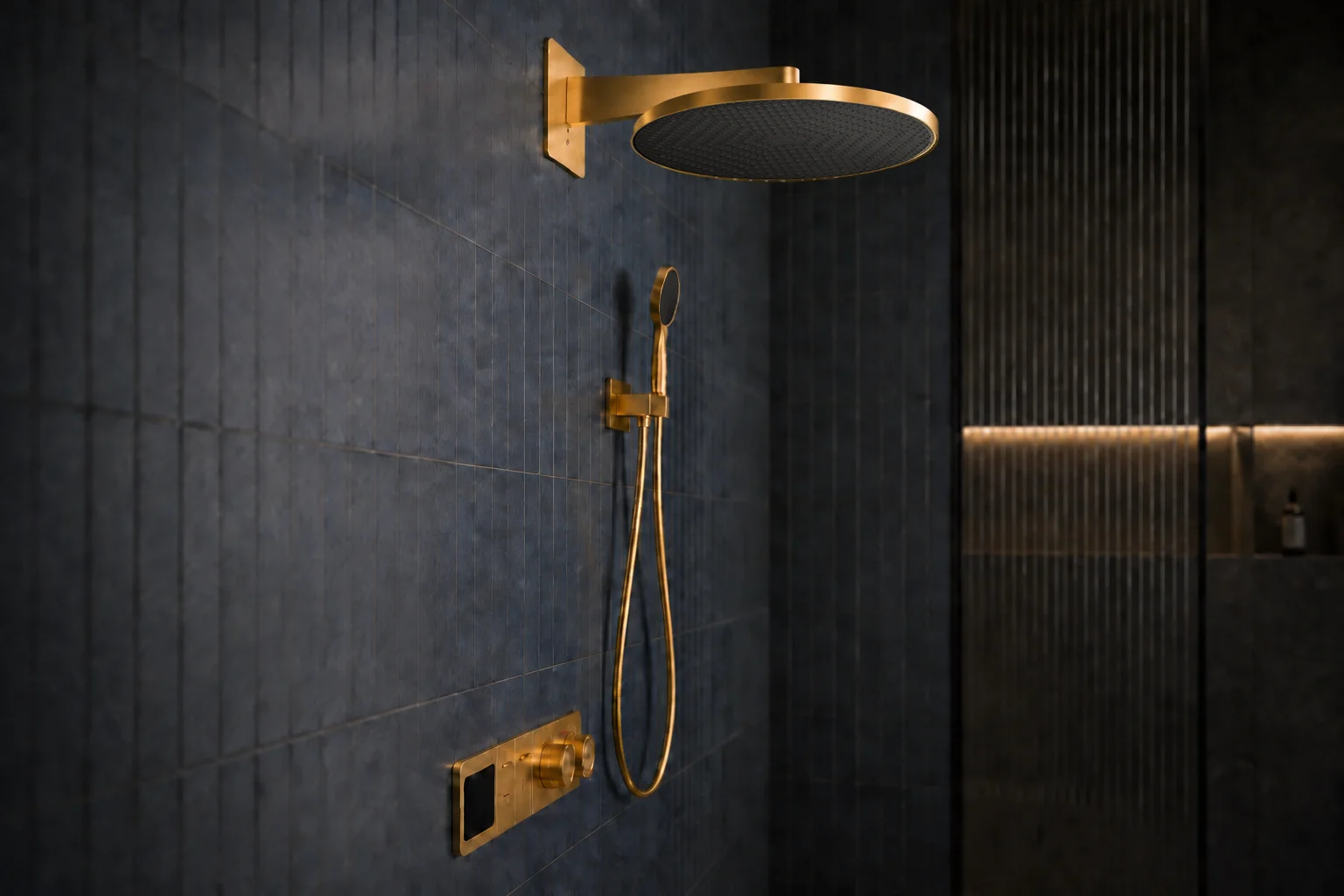

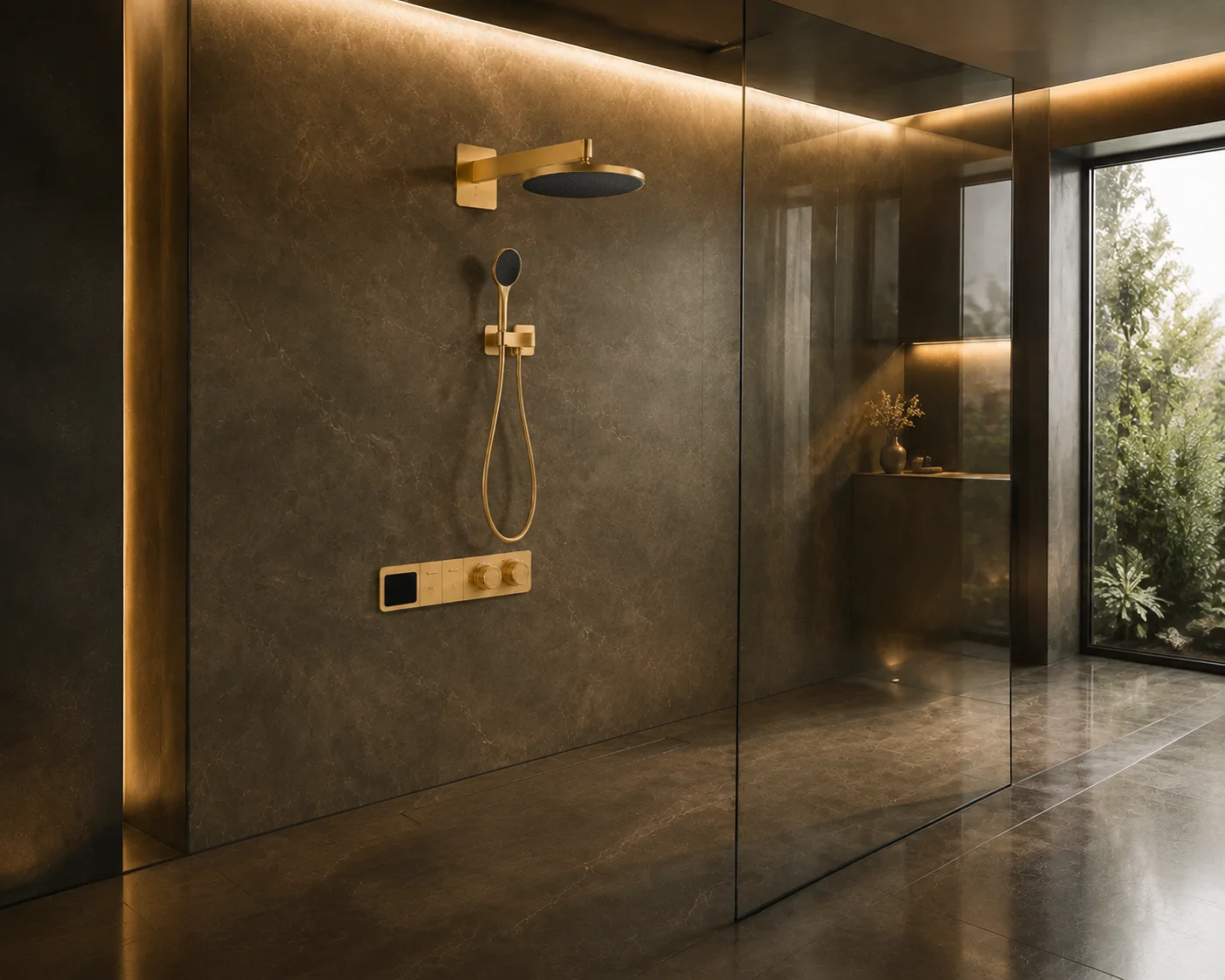

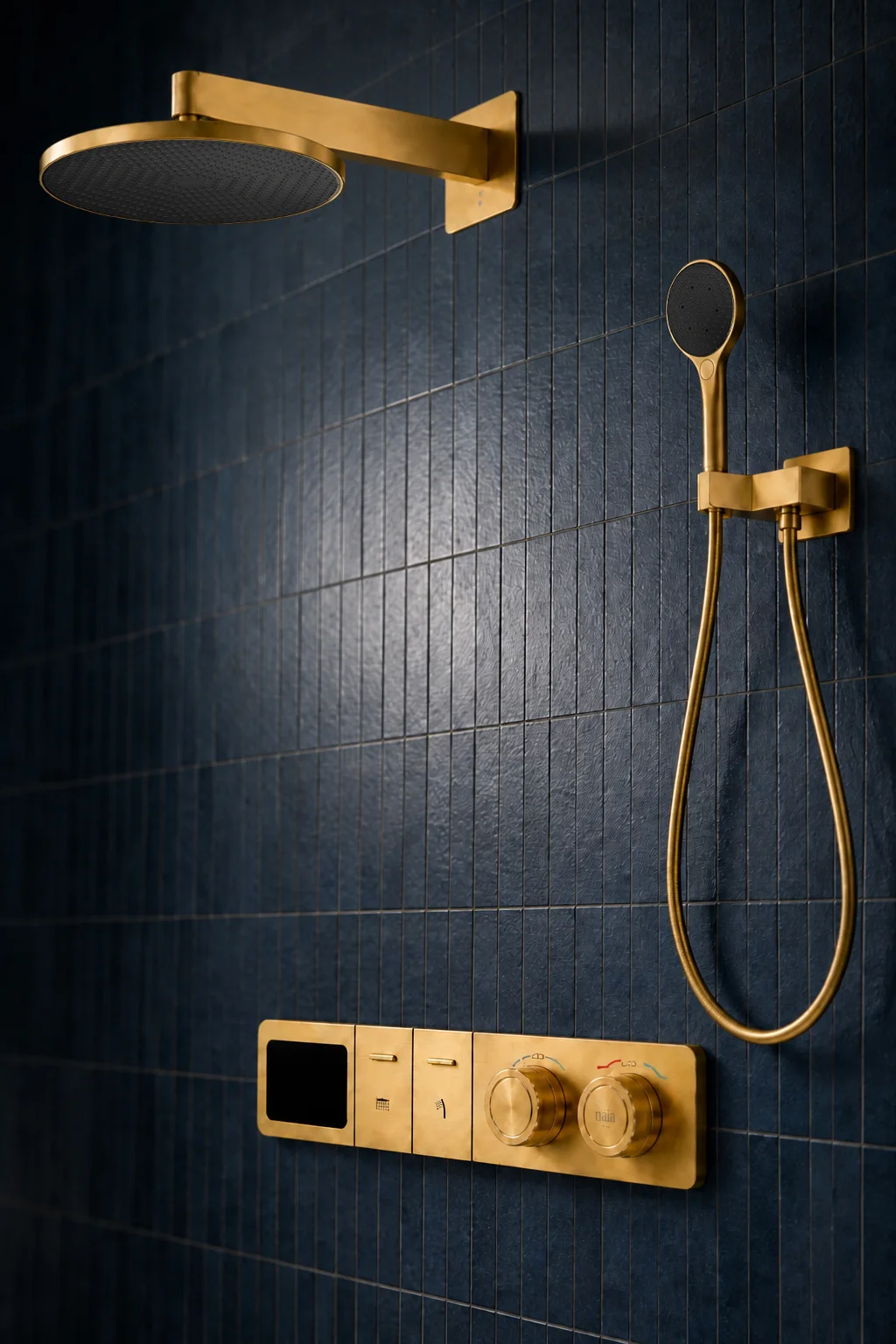

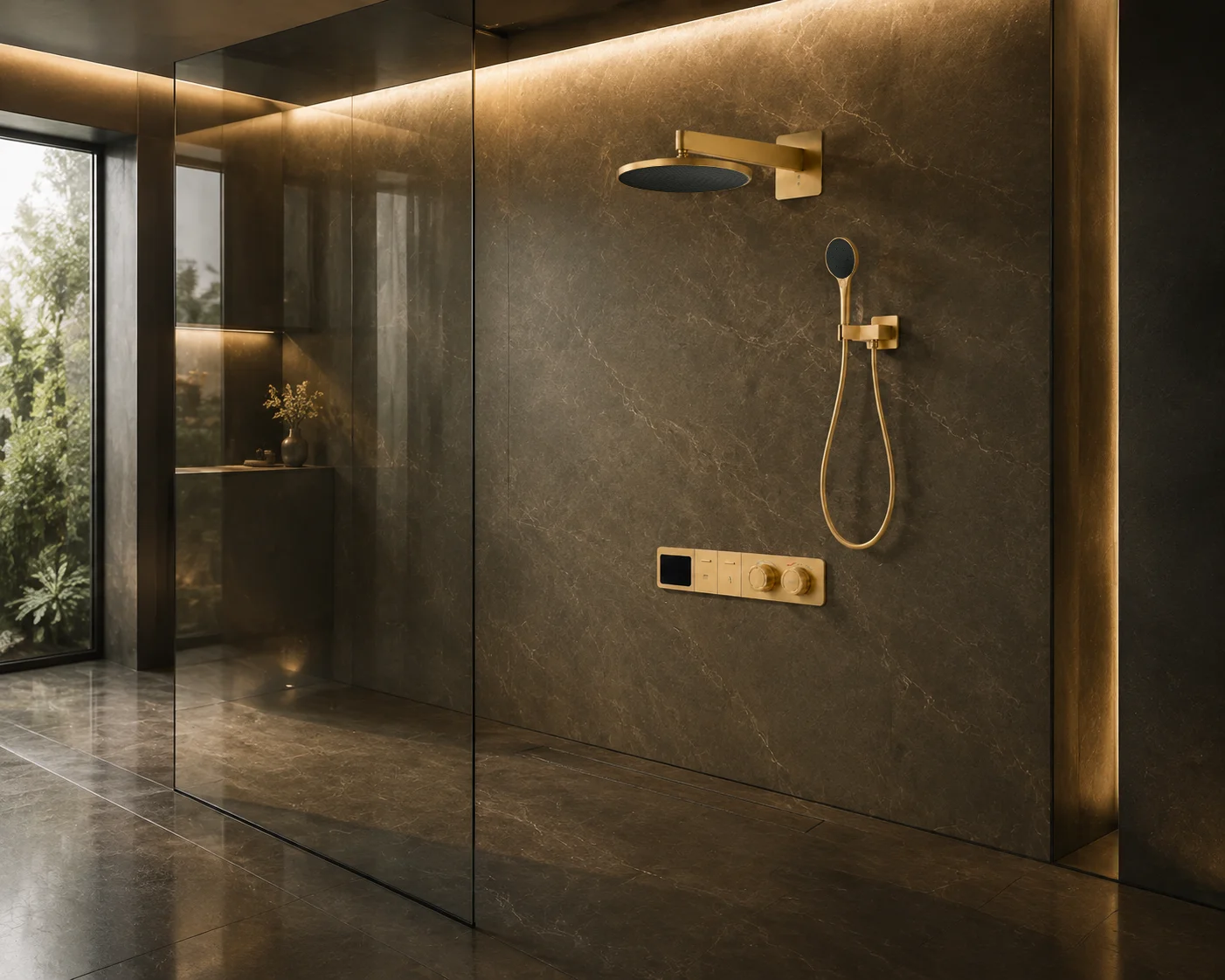

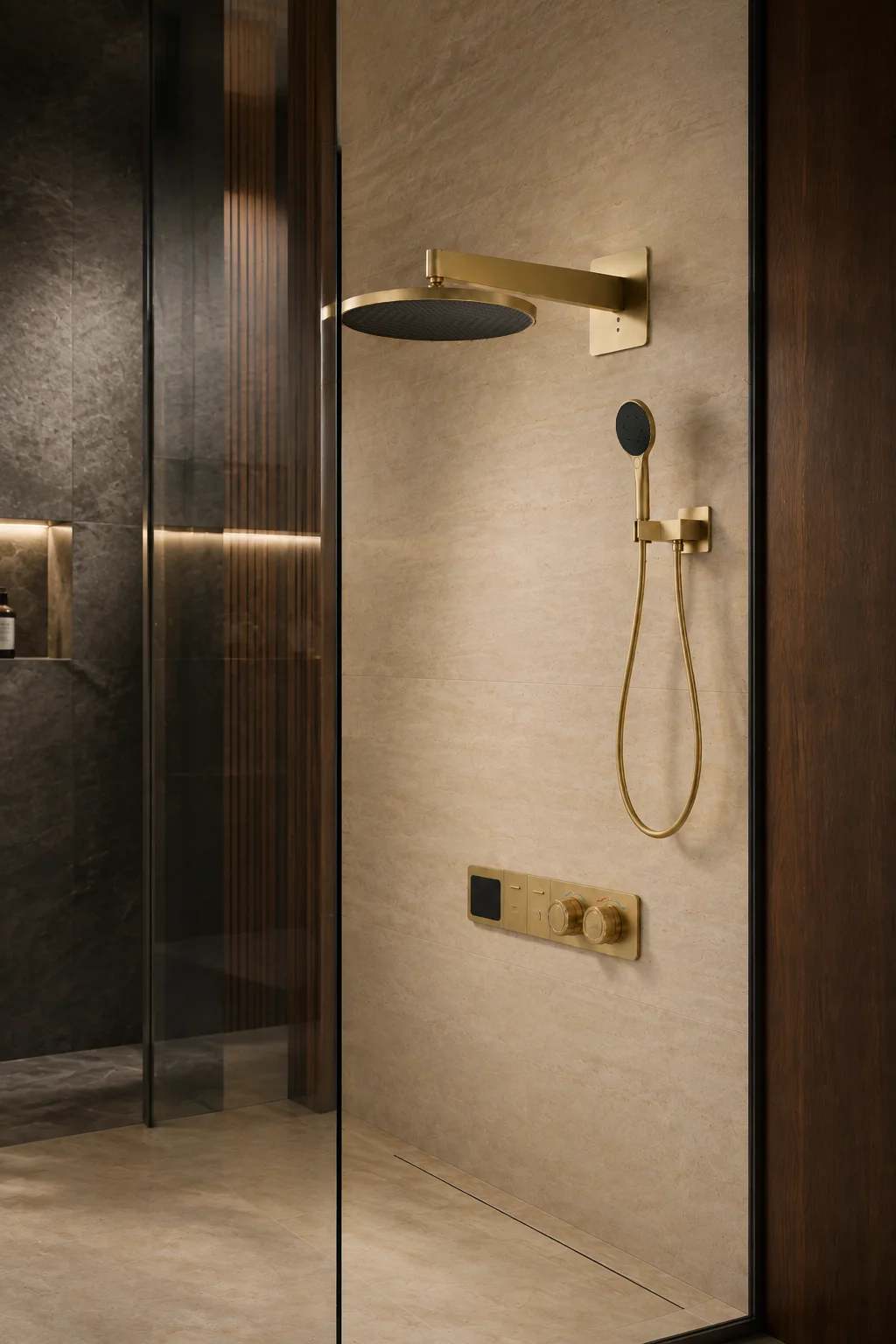

Noor in Brushed Gold, photographed in the settings distributors sell into.
Specifications
Behind the wall

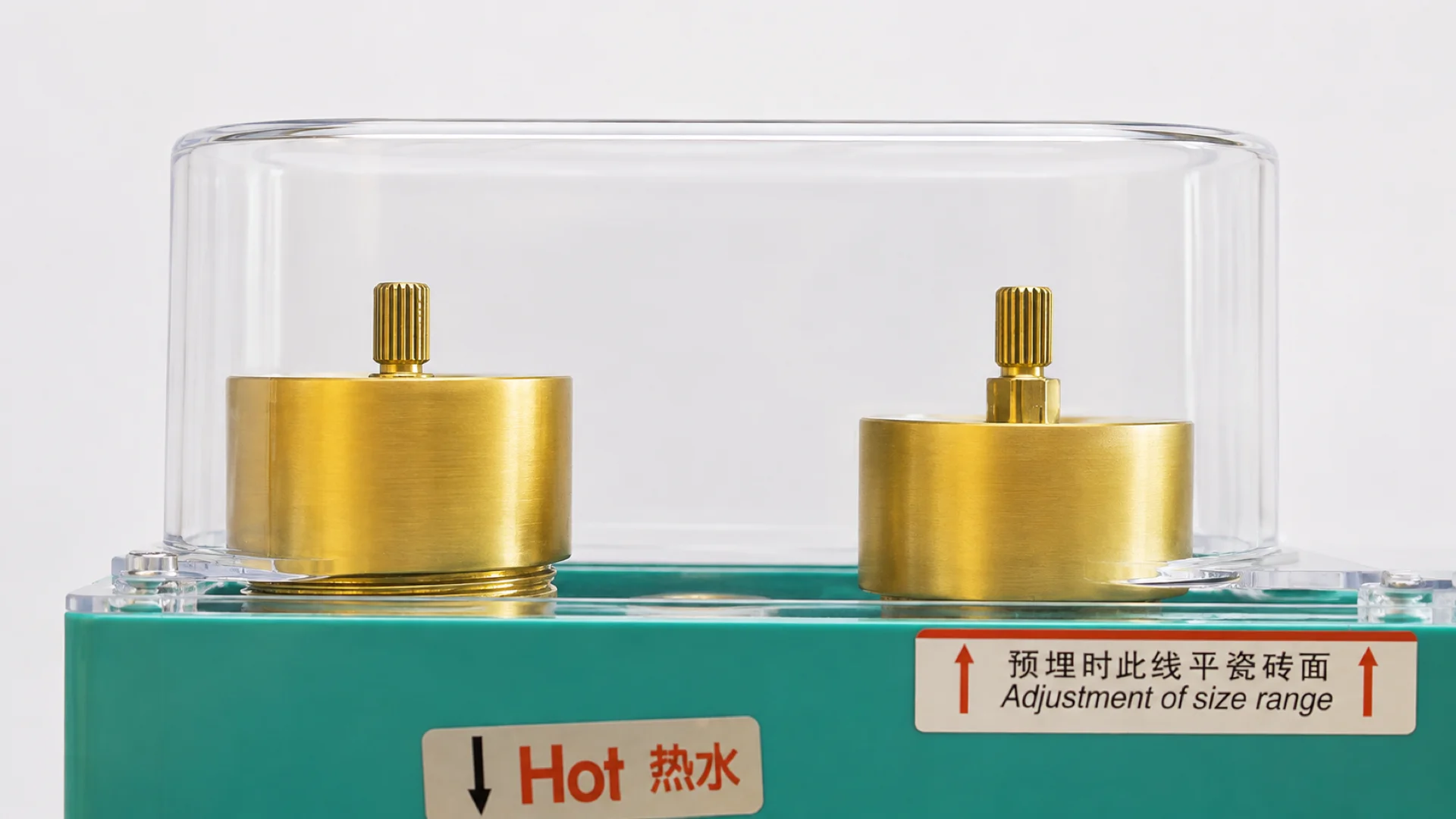

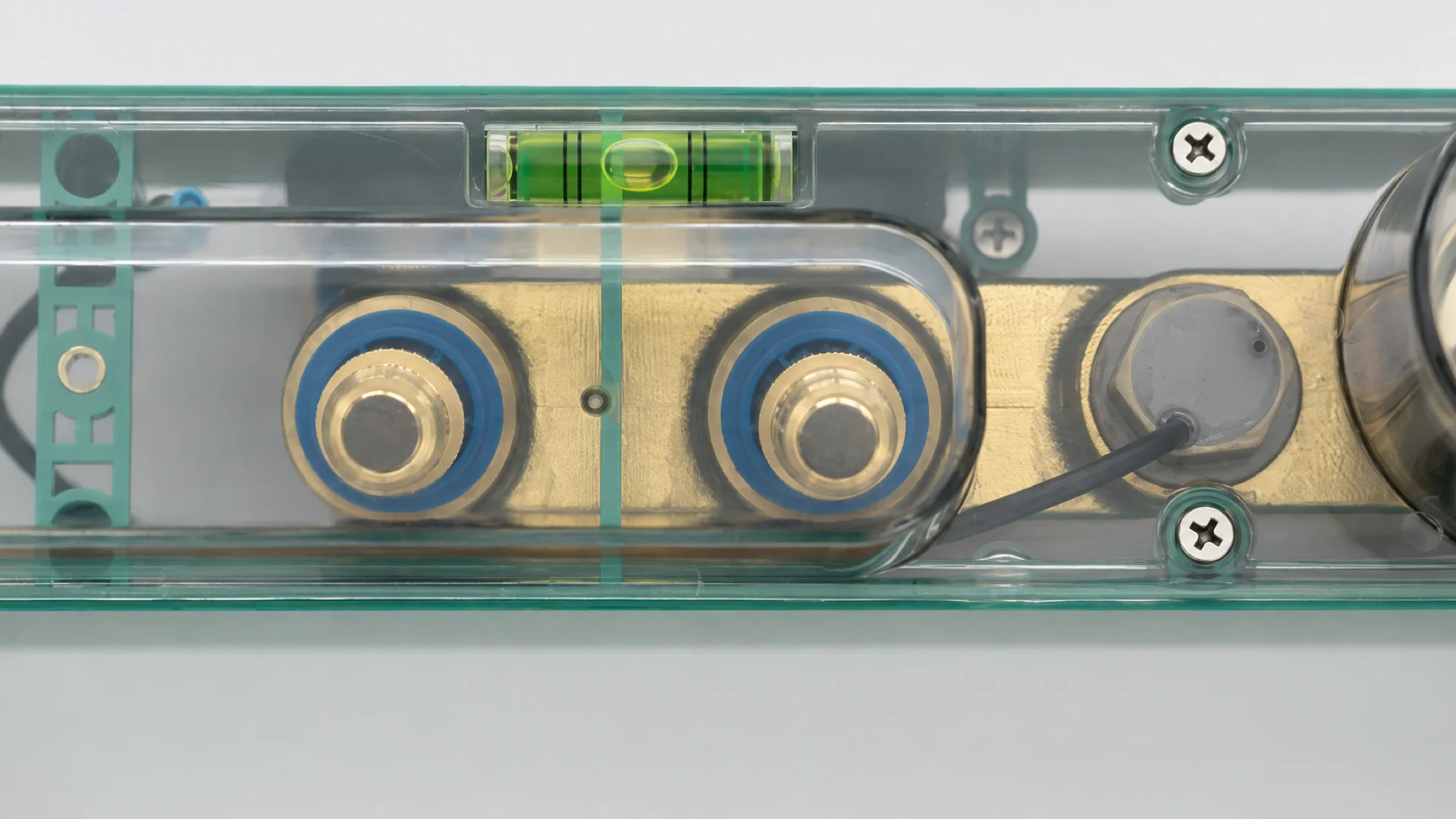

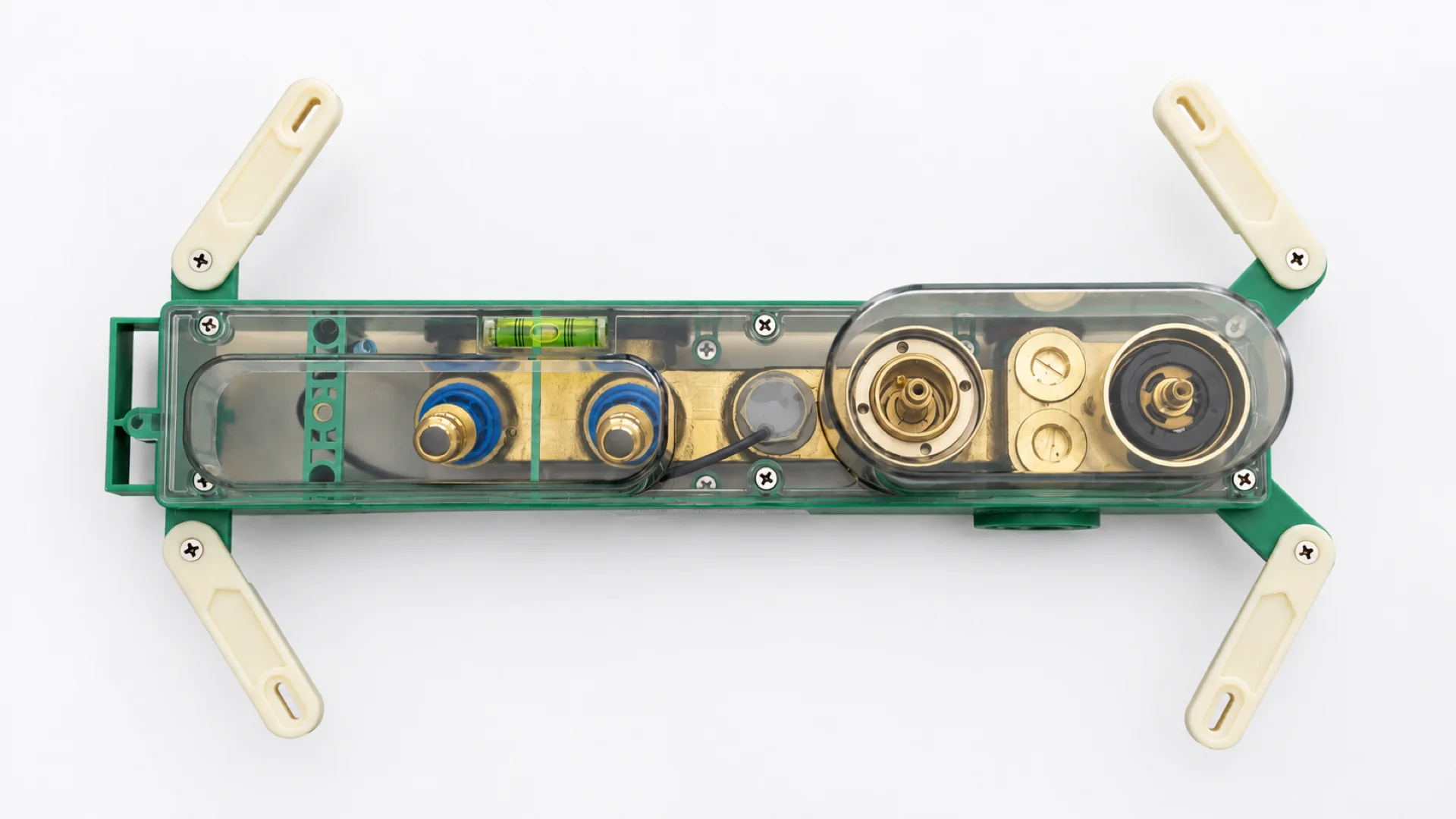

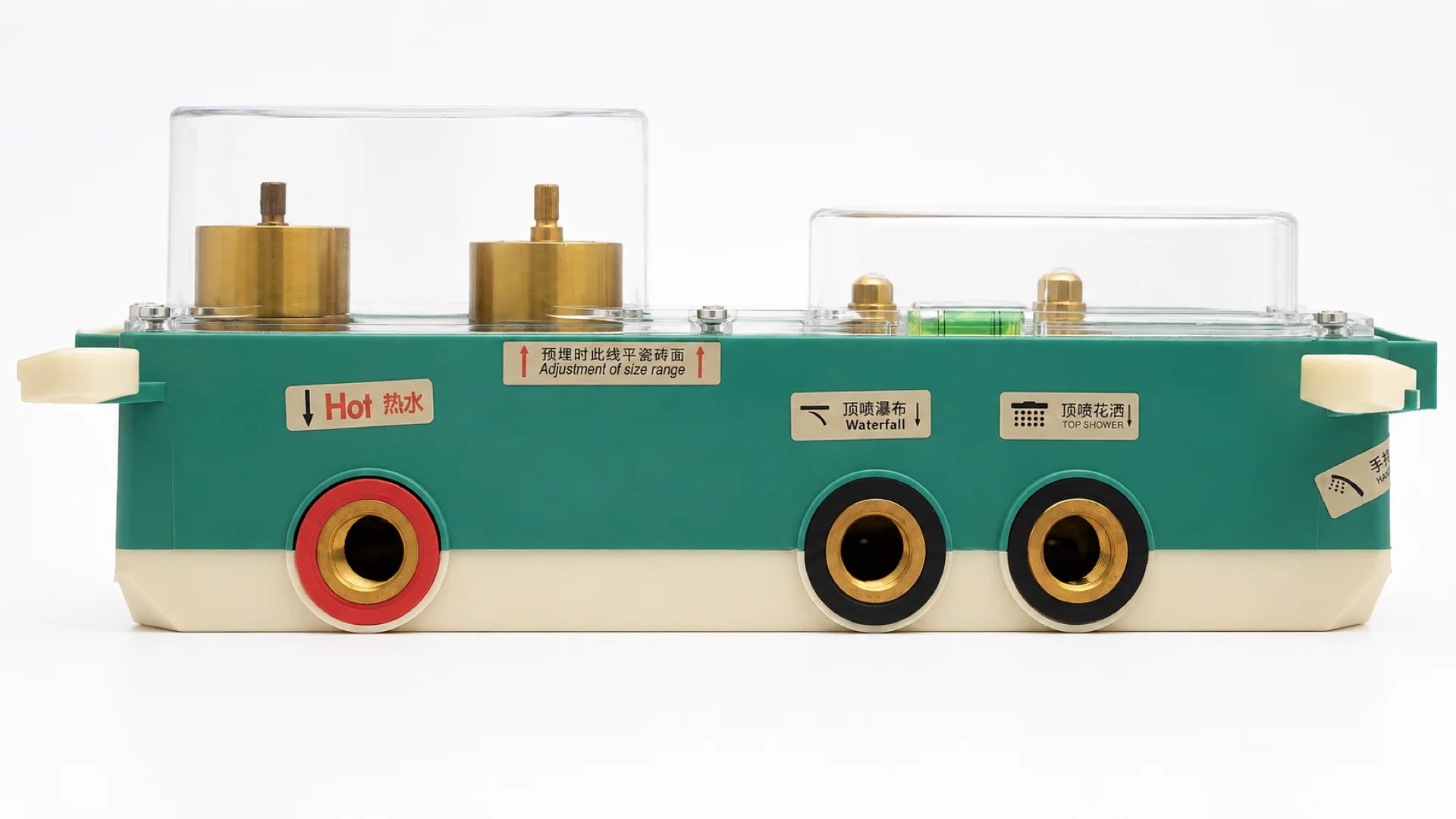

The part the guest never sees is the part the contractor cares about. Noor's concealed body arrives pre-assembled: labelled hot and cold inlets, three threaded outlets, brass valve cylinders under a protective cover, a spirit level moulded into the housing, and mounting arms that swing out to the stud spacing.
Also in the range
Trade enquiries
Order codes, pricing and availability.
Call the trade line with the code above, or send it on WhatsApp and we reply with the current price and stock position.
